Architecture

The FastAuth contract system is organized into several categories based on their responsibilities:

• Entry Point - The FastAuth contract serves as the main gateway for users to interact with the system.
• Router - The JwtGuardRouter contract routes verification requests to the appropriate guard based on the authentication provider.
• Guards - Middleware contracts that verify JWT tokens from specific identity providers (Auth0, Firebase, Custom Issuers).
• Attestation - The Attestation contract manages decentralized public key updates through a quorum-based system.

Contract Interaction Flow

1. User Request: The user calls the sign function on the FastAuth contract with their JWT token and the payload to sign.
2. Guard Resolution: FastAuth resolves the guard contract based on the guard_id prefix. If the prefix is jwt, the request is routed to JwtGuardRouter.
3. JWT Verification: The appropriate guard contract verifies the JWT signature and claims.
4. MPC Signing: Upon successful verification, FastAuth forwards the signing request to the MPC network.
5. Signature Return: The MPC signature is returned to the user.

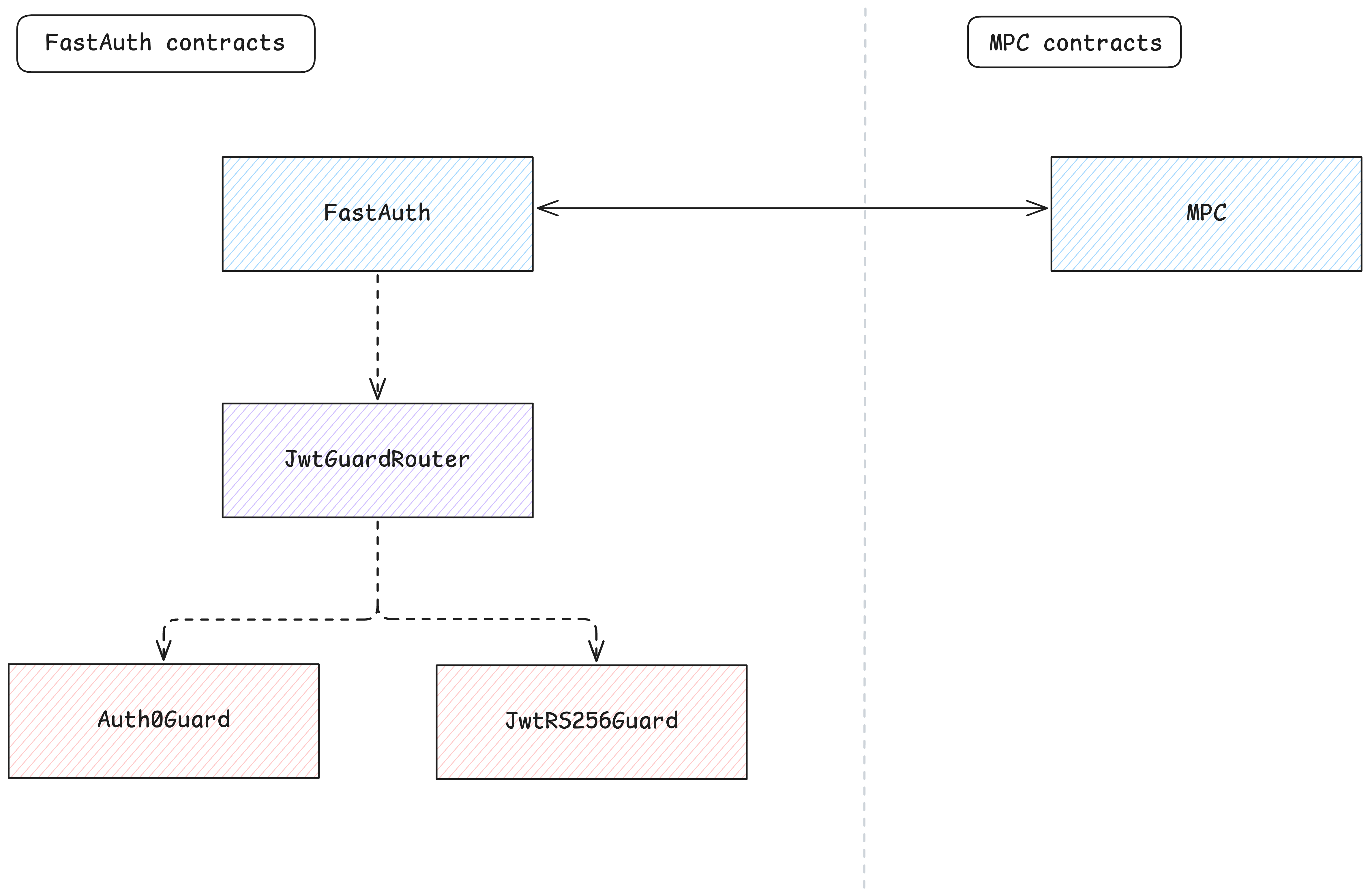

Contract Architecture Diagram

┌─────────┐
│  User   │
└────┬────┘
     │ 1. sign(JWT + payload)
     │
     ▼
┌─────────────────────────────────┐
│        FastAuth                 │
│      (Entry Point)              │
└────┬────────────────────────────┘
     │ 2. guard_id prefix = 'jwt'
     │
     ▼
┌─────────────────────────────────┐
│      JwtGuardRouter             │
│         (Router)                │
└───┬──────┬──────┬───────────────┘
    │      │      │
    │ 3a   │ 3b   │ 3c
    │      │      │
    ▼      ▼      ▼
┌──────┐ ┌──────────┐ ┌──────────────────┐
│Auth0 │ │Firebase  │ │ CustomIssuer     │
│Guard │ │Guard     │ │ Guard            │
└───┬──┘ └────┬─────┘ └────────┬─────────┘
    │         │                │
    │         │ Verify        │ Verify
    │         │ public keys   │ public keys
    │         │                │
    │         ▼                ▼
    │    ┌──────────────────────────┐
    │    │     Attestation          │
    │    │   (Key Management)      │
    │    └──────────────────────────┘
    │
    │ 4. Verification success
    │
    ▼
┌─────────────────────────────────┐
│        FastAuth                 │
│      (Entry Point)              │
└────┬────────────────────────────┘
     │ 5. Forward signing request
     │
     ▼
┌─────────────────────────────────┐
│      MPC Network               │
│    (Signing Service)           │
└────┬────────────────────────────┘
     │ 6. Return signature
     │
     ▼
┌─────────────────────────────────┐
│        FastAuth                 │
│      (Entry Point)              │
└────┬────────────────────────────┘
     │ 7. Return signature
     │
     ▼
┌─────────┐
│  User   │
└─────────┘

Flow Description:

1. User calls sign() on FastAuth with JWT token and payload
2. FastAuth routes to JwtGuardRouter when guard_id prefix is jwt
3. JwtGuardRouter delegates to the appropriate guard:
   • Auth0Guard (3a)
   • FirebaseGuard (3b) - verifies keys via Attestation
   • CustomIssuerGuard (3c) - verifies keys via Attestation
4. Guards return verification success to FastAuth
5. FastAuth forwards signing request to MPC Network
6. MPC Network returns signature to FastAuth
7. FastAuth returns signature to User

Contract Categories

Entry Point

• FastAuth - The main contract that manages guards, verifies payloads via delegation, and coordinates MPC signing. Supports multiple signature algorithms: secp256k1, ecdsa, and eddsa.

Router

• JwtGuardRouter - A registry and router for JWT guard contracts. Delegates verification to the appropriate guard based on the guard name.

Guards

All guard contracts implement the JwtGuard trait, which provides:

• RS256 JWT signature verification
• Issuer and expiration validation
• Custom claims verification (specific to each guard type)

Guard	Provider	Key Management	Custom Claims
Auth0Guard	Auth0	Owner-managed	fatxn claim matching
FirebaseGuard	Firebase	Attestation-based	OIDC hash claim matching
CustomIssuerGuard	Custom OIDC	DAO-managed	OIDC hash claim matching

Supporting Infrastructure

• Attestation - Decentralized public key management through attester quorum consensus.

Security Model

The architecture implements multiple layers of security:

1. JWT Verification: Guards verify the cryptographic signature of JWT tokens using RS256.
2. Claim Validation: Each guard validates specific claims (issuer, expiration, custom claims).
3. Quorum-Based Key Updates: The attestation contract ensures public keys can only be updated when multiple trusted attesters agree.
4. Role-Based Access Control: Administrative functions are protected by role-based permissions (DAO, CodeStager, CodeDeployer, etc.).
5. Pause Functionality: Critical contracts support pausing to mitigate security incidents.
